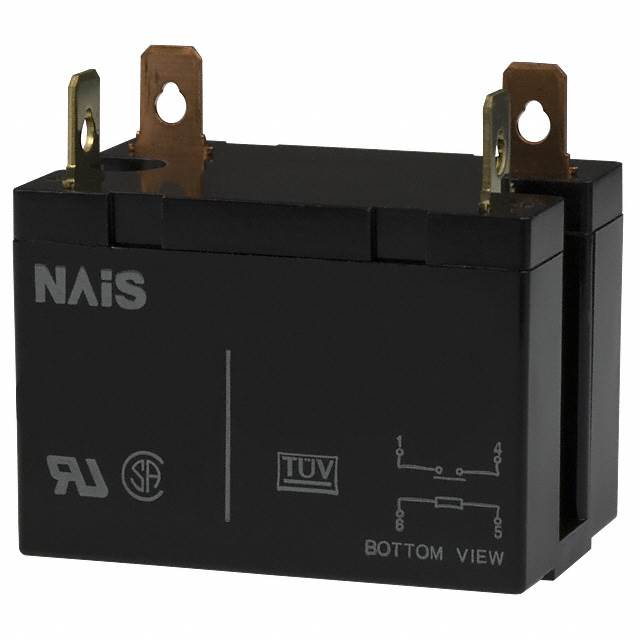

HE1AN-AC24V

Manufacturer No:
HE1AN-AC24V
Manufacture:
Panasonic Electric Works
Package:
Datasheet:
HE1AN-AC24V
Description:
RELAY GEN PURPOSE SPST 30A 24V

In Stock

54 pcs On sales

Purchase and inquiry

Purchase

You may place an order without registering to Lankamic.

We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part. Our sales will reply to your request by email within 24 hours.
IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost
Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.) The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery Time
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days. The following are some common countries' logistic time.

Product Attribute

Panasonic Electric Works HE1AN-AC24V technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works HE1AN-AC24V.

Coil Current
74.0mA
Operating Temperature
-50°C ~ 55°C
Coil Voltage
24VAC
Contact Rating (Current)
30A
Contact Form
SPST-NO (1 Form A)
Operate Time
30ms
Release Time
30ms
Series
HE
Mounting Type
Chassis Mount
Features
-
Coil Insulation
-
Coil Type
Non Latching
Contact Material
Silver Tin Oxide (AgSnO)
Packaging
Bulk
Switching Voltage
277VAC, 30VDC - Max
Relay Type
General Purpose
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Part Status
Active
Must Operate Voltage
16.8 VAC
Seal Rating
-
Must Release Voltage
3.6 VAC
