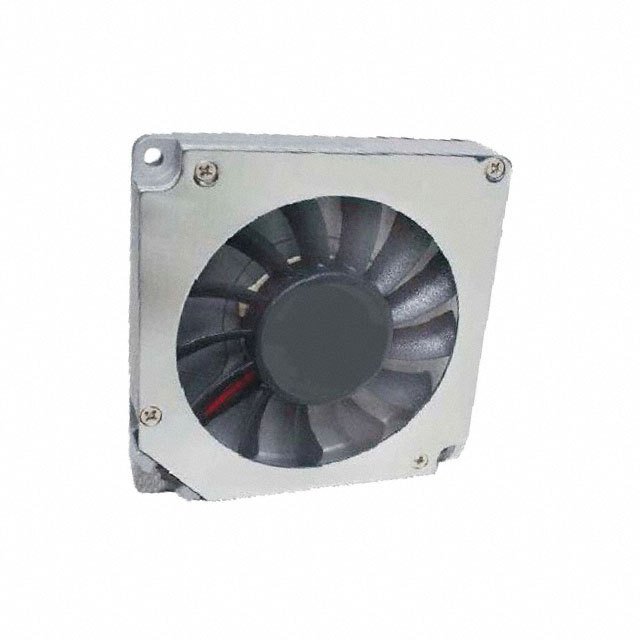

ODB5115-12LB
- Manufacturer No:
- ODB5115-12LB
- Manufacture:
- Orion Fans
- Package:
- Datasheet:
- ODB5115-12LB
- Description:
- FAN BLOWER 51X15MM 12VDC WIRE
In Stock
0 pcs On sales
Purchase and inquiry
Purchase
You may place an order without registering to Lankamic.
We strongly suggest you sign in before purchasing as you can track your order in real time.
Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part. Our sales will reply to your request by email within 24 hours.IMPORTANT NOTICE
1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping Cost
Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.) The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, and UPS.Delivery Time
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days. The following are some common countries' logistic time.Product Attribute
Orion Fans ODB5115-12LB technical specifications, attributes, parameters and parts with similar specifications to Orion Fans ODB5115-12LB.
- Approvals
- CE, cURus
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.045A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3500 RPM
- Power (Watts)
- 840mW
- Noise
- 32.0 dB
- Voltage Range
- 7 ~ 13.2VDC
- Width
- 15.00mm
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Series
- ODB5115
- Voltage - Rated
- 12VDC
- Weight
- 0.059 lb (26.76 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 2.4 CFM (0.067m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Blower
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- -
- Size / Dimension
- Rectangular/Rounded - 51.11mm L x 47.76mm H
