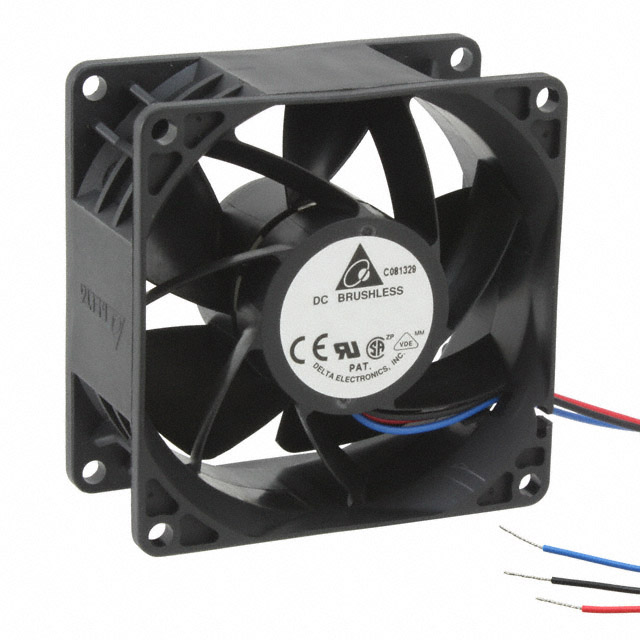

QFR0812SH-F00
- Manufacturer No:
- QFR0812SH-F00
- Manufacture:
- Delta Electronics
- Package:
- Datasheet:
- QFR0812SH-F00
- Description:
- FAN AXIAL 80X25.4MM 12VDC WIRE
In Stock
660 pcs On sales
Purchase and inquiry
Purchase
You may place an order without registering to Lankamic.
We strongly suggest you sign in before purchasing as you can track your order in real time.
Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part. Our sales will reply to your request by email within 24 hours.IMPORTANT NOTICE
1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping Cost
Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.) The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, and UPS.Delivery Time
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days. The following are some common countries' logistic time.Product Attribute
Delta Electronics QFR0812SH-F00 technical specifications, attributes, parameters and parts with similar specifications to Delta Electronics QFR0812SH-F00.
- Part Status
- Active
- Current Rating (Amps)
- 0.330A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 4300 RPM
- Power (Watts)
- 3.96W
- Noise
- 41.2 dB(A)
- Voltage Range
- 5 ~ 13.2VDC
- Width
- 25.40mm
- Static Pressure
- 0.331 in H2O (82.4 Pa)
- Series
- QFR
- Voltage - Rated
- 12VDC
- Weight
- 0.253 lb (114.76 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 54.6 CFM (1.53m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- CE, UR, VDE
- Ingress Protection
- -
Company Profile
QFR0812SH-F00 Relevant information

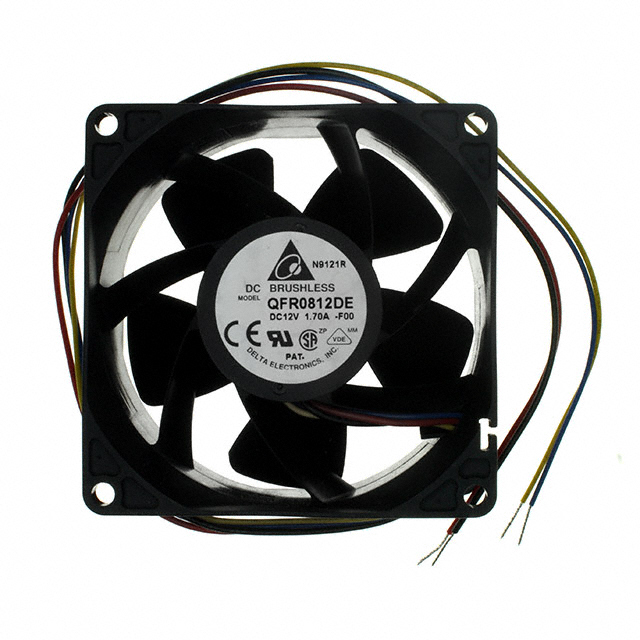

QFR0812DE-F00
